December 20, 2017
Reliable Operating Feel and Quiet Operation Realized Even with Compact Size
Alps Electric Commences Mass Production of “SKTQ Series” TACT Switch™ for Automotive Use
Japanese electronic components manufacturer Alps Electric Co., Ltd. (TOKYO: 6770; President: Toshihiro Kuriyama; Head Office: Tokyo) has developed the “SKTQ Series” TACT Switch™. Mass production began in December 2017.
Today's automobile cabins are quieter than ever as sounds like the noise of the engine running and the vehicle moving along the road have been reduced due to increasingly airtight chassis and the emergence of hybrid and electric vehicle technologies. As for car navigation systems, center consoles and other in-vehicle systems, automakers seek a sharp operating feel to go with touch technology, which is replacing conventional mechanical input. This is especially the case for premium vehicles in the European market.
In addition, increasing use of electronics in automobiles means there is more circuitry around the driver's seat, demanding even greater miniaturization of electronic components inside systems.
Alps Electric has now developed and commenced mass production of the SKTQ Series TACT Switch™, employing a unique internal structure to retain the compact dimensions of the existing SKSU Series—a product with an extensive track record in mass production as a TACT Switch™ for automotive use—while enabling quiet operation as well as a high 5N operating force and definite clicking feel that are ideal for automotive use. This helps to prevent accidental operations while driving and realizes a pleasant and clear-cut operating feel that goes superbly well with touch panel control. Furthermore, the pre-stroke design prevents play during initial operation for a premium feel from this middle-stroke switch.
Besides the 5N operating force product, Alps Electric is considering adding 3.5N, 4N and 4.5N varieties to the lineup through which it will contribute to a more comfortable experience for vehicle users.
Features
Compact TACT Switch™ simultaneously realizing reliable operating feel and quiet operation
- High operating force (5N) helps prevent accidental operations
- Quiet operation and definite clicking feel

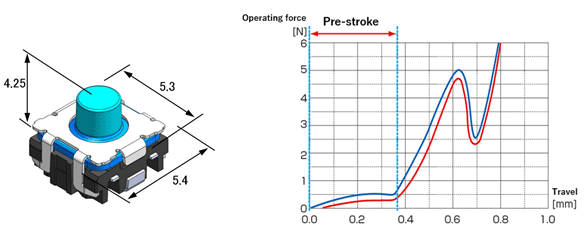

- Pre-stroke design used to prevent play
- Compact middle stroke type with the same dimensions (5.3 × 5.4mm) as the existing SKSU Series
Principal Applications
Steering wheel switches
Center console panels
Car audio, navigation and other systems
Planned Release
| Mass production: | From December 2017 |
| Sample price | ¥100 (Tax excluded) |
| Development | Engineering Headquarters—Furukawa R&D Center (Osaki City, Miyagi Prefecture) |
| Production | Production Headquarters—Kakuda Plant (Kakuda City, Miyagi Prefecture) |
| Monthly output | 2 million units (February 2018) |
Specifications
| Model | SKTQ Series |
| Dimensions (W×D×H) | 5.4×5.3×4.25mm |
| Operating force | 5N |
| Travel | 0.71mm |
| Operating life | 200,000 cycles |
